Toyozumi Dengenkiki UE series, ES21 series
We support the export of customer "UL + CE standard transformer" products (UE Series and ES21 Series), which meet the various foreign standards necessary for exporting power transformers or equipment containing transformers to North America (the US and Canada).
Single and Three Phase Foreign Standard Compliant Power Transformer Series
Obtained UL 506/C 22.2 No. 66 Standard (with authorization mark)
IEC61558 Standard Compliant (CE marking)
Made using L94V-O Authorized Materials
RoHS Directive Compliant
UEE model
Single Phase, Multicoil, 50/60 HZ Class 155/F Insulation
Primary - Secondary/ Iron Core/ Shield. Secondary - Iron Core/ Shield Voltage Resistance 4KV
Optional configurations for Earth Iron Core, Grounded (G) Static Electricity Shield, and Core Anodes as standard equipment.

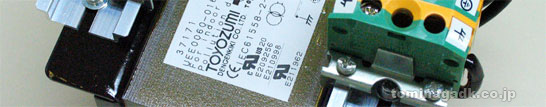

The Recognized Component Mark, standard in the US and Canada, is displayed on the body for both the UL standard and C-UL(CSA) standard, and is necessary for the export of a product to the US and Canada.
At Toyozumi Dengenkiki, we undergo a UL follow up service four times a year (factory examinations at irregular intervals), and maintain our product quality.
Series | Phase | Primary(V) 〔choice〕 | Secondary(V) 〔choice〕 | Secondary(A) 〔choice〕 |
|---|---|---|---|---|
| UEA | 1φ | 100/110/115/120 | 20/22/24 | 10/15/20 |
| UEB | 1φ | 100/110/115/120 | 100/110/115/120 | 3/5/7.5/10/15/20 /30/40/50 |
| UEC | 1φ | 200/208/220/230/240 | 20/22/24 | 10/15/20 |
| UEE | 1φ | 200/208/220/230/240 | 100/110/115/120 | 3/5/7.5/10/15/20 /30/40/50 |
| UEF | 1φ | 200/208/220/230/240 | 200/208 /220/230/240 | 3/5/7.5/10/15/20 |
| UEK | 1φ | 380/400/415/440 /460/480 | 100/110/115/120 | 3/5/7.5/10/15/20/30/40 |
| UEL | 1φ | 380/400/415/440 /460/480 | 200/208 /220/230/240 | 3/5/7.5/10/15/20 |
UET( ) | 3φ | 380/400/415/440 /460/480 | 200 | 10/15/20/25/30 |
UET( ) | 3φ | 380/400/415/440 /460/480 | 200 | 10/15/20/25/30 |
Single Phase CE Marking Compliant Power Transformer Series
EN61558 Standard Compliant (CE Marking)
RoHS Compliant Product
Single Phase, Multicoil, 50/60 Hz, Class B Insulation
Primary - Secondary/ Iron Core/ Shield Voltage Resistance 3.64 KV
Secondary/ Iron Core/ Shield Voltage Resistance 1.65 KV
Standard equipment of Earth Iron Core, Static Electricity Shield (G), and Core Anodes
Capacity 300VA ~ 5KVA
CE Marking, which is displayed on the UE Series and ES21 Series, indicates that the products have received confirmation of fulfilling the requirements for EU directives, and products without this mark cannot be exported to or sold in European economic areas (the 25 EU countries, Iceland, Norway, and Lichtenstein).
Also, at Toyozumi Dengenkiki production facilities, in order to maintain our license as a manufacturer of EN standard compliant power transformers, we undergo yearly regular TÜV facility inspections, and maintain our product quality.
